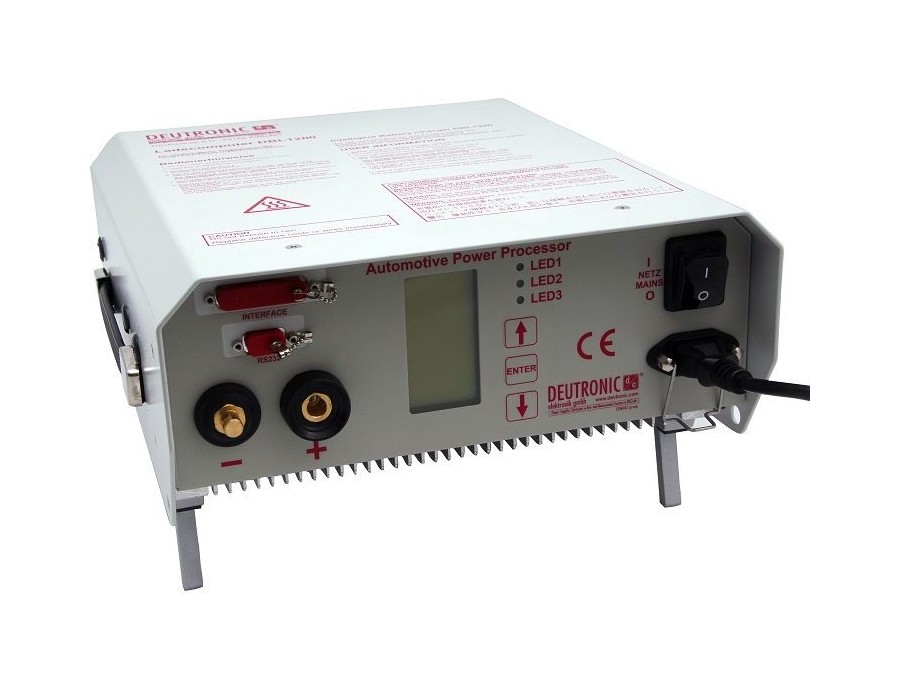

DBL1600-14
Modern vehicles include a multitude of electrical and electronical components. Vehicle onboard networks possess more than 100 control devices that have to be powered. The hardware and software is adjusted optimally and individually to the respective application and guarantees the greatest possible amount of security and reliability. Deutronic charging computers have proven their worth a thousand of times and thus have been in use by leading OEMs worldwide for decades. An absolute interconnectivity offers a multitude of possibilities: from real time monitoring or remote control to the downstream analysis and processing of all saved data. This means that the applications are almost limitless.
DBL1600-14
- Use as battery charger, power supply and motor vehicles energy supply in buffer mode (support during diagnosis / flash programming)
- Suitable for lead acid, gel, AGM, fleece and lithium-ion batteries depending on the firmware version
- The firmware 1.41 and 1.70 are available as Deutronic standard
- Firmware 1.41: Charging Mode: Automode, FSV, charging-P
- Firmware 1.70: FSV, charging-PB, charging-Li (LFP), Power-Up
- The “automatic battery detection” function is offered as a customer-spezific solution
- For details see data sheet
- Comfortable menu navigation / charging parameter configurable
- Extensive protection functions and self-protection functions
- Short circuit and reverse polarity protection
- Built-in communication interface
- Protection against defective batteries
- Reliable sparking suppression
- Sealed housing, protected against internal pollution
- Housing version ’B’: Advantageous for industrial production lines
- Status indication via display and high power LEDs
- Menu navigation: English, French, German, Italian, Spanish
- Wide range of accessories e.g. external visualization of operating state (DBL-SIG-LR remote indicator), charging cable etc.
- Option : Regeneration charging for deep discharged batteries
- Option : Battery diagnostic system
- Option : Operation with low temperature until -40°C
- Option : Customized charging parameters
- Electrical safety – certifications: EN60335, EN61010, UL1236
- Utilized and approved by well known automotive manufacturers
Specifications
Typ | Input [V] | Output [V] | Output [A] | Cat. No |
|---|---|---|---|---|
DBL1600-14 | 100-240VAC | 14,4/13,2VDC | 90A/105A Boost | 107063/0/000 |
DBL1600-14-B | 100-240VAC | 14,4/13,2VDC | 90A/105A Boost | 107068/0/000 |
